There are masses of geotagged photos in cyberspace nowadays, by which I mean jpegs with location information (latitude, longitude) included in the embedded EXIF data. It’s all thanks to the popularity of the iPhone with its camera, built-in GPS unit and ready connection to the Internet. Social networking sites and interaction with on-line map services such as Google Maps all help to fuel the fun.

The geotag bonanza is not limited to iPhone users. Modern Windows Mobile phones and other platforms all have the same capability, if not the surrounding hype.  And we are starting to see GPS units incorporated into point and shoot cameras, for example the Nikon Coolpix P6000 which geotags pictures automatically before they ever leave the camera.

But what about DSLR users? When do we get in-camera GPS? And why would we want it?

I for one don’t see it as a gimmick. For people who take a lot of photos on their travels it can be hard to keep track of exactly where you took every photo. It’s not as if the Eiffel Tower will be in every shot. For example, I took the picture below on a Far East cruise two years ago.  I shot this from the deck of the ship as it was making its way from Nagasaki to Osaka, meandering around the Japanese islands.

I was fascinated and bemused by the unexpected sight of a mock-up of Venice. I’d love to know what it was all about and where this was.  But I don’t have the details of the route the ship took, so my chances of finding out are probably slim.

GPS-enabling DSLRs would be such an obviously useful thing, but as of today there are none.  The closest we have come to it is Nikon’s  GP-1.  This is a stand-alone GPS unit which attaches to the hot-shoe of the D90 D3, D300, and D700 cameras and adds automatic geotagging of photos.  Nothing at all yet for Canon, Sony et al.  So what to do?

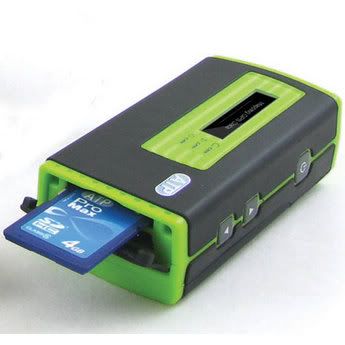

Purpose-built geologging devices

Well there are dedicated devices for geologging, that is keeping a log of your geographical position by taking regular GPS readings and writing them to a file, along with a corresponding timestamp. The idea is you later use suitable software to match the photos to the location data, by reference to their respective timestamps, and the EXIF data updated to include the geotag.  There are also fancy geologging devices which accept an SD card with your photos on it and add the geotags automatically.  But such wonders do not come cheap.  This one from ATP is about $90.

Windows Mobile phone used as geologging device

I wondered whether I could do the whole thing for free by using the GPS unit built into my Windows Mobile phone, instead of buying a dedicated geologger.  My phone (HTC TyTN II)  certainly includes GPS in the spec, but did not come with any satellite navigation software and I had never bothered with any, so the GPS unit had probably never even had juice through it.  Still, maybe it had not totally atrophied from months of being ignored.

I hit upon a free application, GPSToday, which is essentially a clone of the Google map application for mobile phones. Crucially it has a geologging function.  You can set it going and, as you walk around, every 30 seconds it writes your location to a file.  You can change the frequency of readings or let it vary it “intelligently”. I guess that means it takes more readings when you are moving about more.

This sounded desperately promising, so I installed it and got it working.  It works perfectly, happily latches onto legions of satellites when you are out and about, and on request records your travels in a text file (I elected to call it geolog.txt) in the following format:

time,latitude,longitude,altitude (feet),speed (mph),heading
06-16-2009 17:14:48,34.361445,21.317156,440,0,0
06-16-2009 17:14:59,34.361486,21.317144,407,0,0
06-16-2009 17:15:10,34.361502,21.317144,404,0,0
…

That’s the first snag.  It’s just a flat file, not in any recognised format for location data such as GPX or NMEA.  How could I expect it to be recognised by any suitable photo geotagging software?  GPSToday assure us that a future version will output in GPX format, but for now we’re stuck with the existing non-standard format.

Getting the location data in a recognised format

Enter GPSBabel, a free software application that translates location information between a myriad of formats (including all the proprietary SATNAV manufacturer systems) and even “custom” formats such as the one used by GPSToday.  Mind you, it is hardly straightforward.  You have to use the “xcsv” mode and create a “style file” to tell GPSBabel how to interpret the non-standard location data.

This is how I did it.  I created a folder on my C: drive called GPSBabel and in there put all the files downloaded from the GPSBabel site.  I also copied the location data file geolog.txt from my phone to the GPSBabel folder. I then created a text file called GPSToday.txt, in the same folder, into which I inserted the folowing text:

# Format: GPStoday

DESCRIPTION  GPStoday
EXTENSION               txt

#
# FILE LAYOUT DEFINITIIONS:
#
FIELD_DELIMITER COMMA
RECORD_DELIMITER NEWLINE

PROLOGUE time,latitude,longitude,altitude (feet),speed (mph),heading
IFIELD ISO_TIME,”",”%s”      # time
IFIELD LAT_DECIMAL, “”, “%f” # Latitude
IFIELD LON_DECIMAL, “”, “%f” # Longitude
IFIELD ALT_FEET,”",”%.0f”    # altitude
PATH_SPEED_MPH,”",”%.1f”     # speed
PATH_COURSE,”",”%f”          # heading

I saved it and changed the extension to .style so the file became GPSToday.style.

Now I should explain that I did not arrive at that style file at the first attempt.  Most of it wasn’t too bad but the time field setting was a nightmare.  I tried just about all the options in the GPSBabel help system and none worked.  GPSBabel could not understand the date/time data in the format output by GPSToday, no matter what I did.

In the end I decided to use the ISO_TIME option and run a script to rearrange the date/time information into a format that would be understood by GPSBabel in conjunction with the ISO_TIME setting.  In practice, this meant writing a bit of Visual Basic code.  For convenience I did this from Excel.

This is the code:

Sub FixTime()

Dim TextLine As String
Dim LineBuffer As String

Open “C:\GPSBabel\geolog.txt” For Input As #1
Open “C:\GPSBabel\geologISOTIME.txt” For Output As #2

Line Input #1, TextLine
Print #2, TextLine

Do While Not EOF(1)
Line Input #1, TextLine

LineBuffer = “”
LineBuffer = LineBuffer & Mid$(TextLine, 7, 4) & “-”
LineBuffer = LineBuffer & Mid$(TextLine, 1, 2) & “-”
LineBuffer = LineBuffer & Mid$(TextLine, 4, 2) & “T”
LineBuffer = LineBuffer & Mid$(TextLine, 12, 8) & “Z”
LineBuffer = LineBuffer & Mid$(TextLine, 20)

Print #2, LineBuffer

Loop

Close #1
Close #2

End Sub

On running this VB macro, a new file, geologISOTIME.txt is created in the same folder, with the same data as geolog.txt but with the date/time format changed so that it would be acceptable to GPSBabel.

You can then run GPSBabel, by double clicking the file GPSBabelGUI.exe.  You have to point it at the input file, geologISOTIME.txt, and specify that it is in xcsv format and also specify the style file, GPSToday.style.  Give the output file name as say geolog.gpx and specify the gpx output format.  Then run the translation process to get your location data into a standards compliant format you can use with a photo geotagging program.

Applying the geotags

The final step is to feed both the gpx file and your photos to a program which can do the timestamp matching and write the geotags to the photo files.  I picked a free open source program called GPicSync.

It is fairly self explanatory in use.  If you managed to cope with the format conversions then running it will not be too taxing.  It creates new versions of your photos, with the geotags written into the EXIF data, and saves the untouched originals in a backup folder.  Job done.

Proving the geotagging has actually worked

As an independent check I downloaded Microsoft’s Pro Photo Tools 2 suite, again free.  If you open one of your geotagged photos in that application you can use the built-in map function to locate where the geotag is saying the picture was taken.

I did that and was amazed to find that my pictures were all correctly geotagged.  Having done the hard work I now have a proven workflow for geotagging photos taken with my DSLR, and it did not cost me a penny.

Using the geotagging solution in practice

It’s simply a matter of making sure you take your phone on your photo trips and the geologging function is in operation from before you take the first picture in a batch, and until after the last picture in the batch.  You can keep starting and stopping the logging function.  You don’t have to change the logging file name, GPSToday just appends new time/location records without overwriting.

It is important to make sure the GPS is logged in to some satellites before starting shooting.  Best to turn the GPS on in persistent mode (see GPSToday help) and just leave it on for the day.  And check periodically it is still locked on.  You don’t want to be caught out by finding the GPS is off or not latched onto a healthy bunch of satellites as you are about to start taking pictures.

One important point: time zone.  The workflow will only work if the timestamps on the photos and the phone are in sync.  Make sure, particularly if you are travelling abroad, that the time settings on both camera and phone are in sync.

This post considers the options in response to question 1.1 posed in my earlier post: the questions you should be asking yourself about your workflow.

The question was:

1.1 What are you going to do about taking notes that will help you process your pictures correctly later?

This is something I confess hadn’t occurred to me at all until Scott Bourne, wildlife and landscape photographer, recounted an anecdote while being interviewed about workflow on the popular This Week in Photography podcast.  In particular it was episode #62.

Scott was talking about a student of his who, on examining his images on the computer after a day’s shoot, spotted a series all of the same subject where all but one were clearly over or underexposed.  So he deleted all but the correctly exposed one.  Only when it was too late did the realisation hit him that he had destroyed a sequence he had intended to combine into a High Dynamic Range (HDR) image.

Scott mentioned he sometimes writes the letter “H” on his hand and takes a photo of it to remind himself that the following sequence of exposures are for blending into an HDR.

There are photographic situations like that, when you will not be able to process some of your images correctly without reference to contemporaneous information about conditions, circumstances or intended use.  If you are going to be taking a lot of pictures in a single shoot, it may be dangerous to rely solely on your memory, especially if you might not get an opportunity to process your images for some days.

Another example: it might be helpful to record information about ambient lighting (eg indoors under tungsten bulbs) to help you set white balance later.  Or you might have decided to deliberately underexpose because you wanted to preserve highlight information, but with the intention of correcting later.

Before considering the options, we need to think about the criteria we will use to assess them.  These are the criteria I will use in this post, and in other posts which address questions about workflow:

COST

CONVENIENCE

RISK

QUALITY

(I’ll use a RAG colour coding system)

There will inevitably be a balance to be struck between these.  The choice you make for yourself will most likely reflect the compromise which makes most sense in your own circumstances.

Suggested options:

a) Don’t bother – rely on memory

This is fine if you rarely take large numbers of images between processing sessions, don’t indulge in “special” shots (where the processing has to complement the camera settings), or are blessed with an eidetic memory.

COST – CONVENIENCE – RISK – QUALITY

b) Use a notepad

Make sure you have one in your camera bag and a supply of pens or pencils.  Record the date and location, and any pertinent info about shots you’re taking.  You can go into detail if you need to. The drawback is relating your notes to specific images.  You really need to check your camera for the relevant image file numbers, which can be a nuisance.  And don’t lose the pad.

COST – CONVENIENCE – RISK – QUALITY

c) Write on your hand and take a photo as per Scott Bourne

Great for something simple like introducing an HDR sequence. Not so good for intricate notes when you’re doing something complicated.

COST - CONVENIENCE - RISK - QUALITY

d) A voice memo device

There are small dedicated voice recorders available and many mobile phones support voice memos.  It may though be hard when back at the computer to find info about a specific shot if it’s in the middle of a recording.  And, as with the notepad, you need image file numbers.  Some (expensive) cameras support voice memos which at least takes care of associating each voice memo with the corresponding image.  Applications such as Adobe Lightroom are starting to support camera-recorded voice memos.

COST - CONVENIENCE - RISK - QUALITY (dedicated device / mobile phone)

COST - CONVENIENCE - RISK - QUALITY (camera voice memo)

These are just my thoughts.  Please suggest any solutions of your own.

Workflow is a big subject, and far more important than is often realised, even for the amateur photographer.

If you have a well thought through workflow that suits your personal circumstances and preferences, then you can stop wondering and worrying about how to get things done quickly and conveniently. The backroom processing will become a familiar, comfortable routine, freeing you up to concentrate on enjoying your photography.

So how do we nail down that ideal workflow? There is no “one size fits all” solution, because needs will vary depending on whether you are a professional or taking photos purely for pleasure, on your throughput of images, on how much you can afford to spend on software and equipment, on the kind of photography you are interested in, on whether you shoot in studio or on location, on your personal preferences, etc.

So instead of attempting to prescribe a workflow, I’m going to suggest a series of questions you should be thinking about, covering all aspects of your photographic process from click to print. Your individual answers, reflecting your own preferences and circumstances, should help lay down the basis of a workflow that will work for you.

In this post I’m putting forward the questions. In future posts, I’m going to be taking each of the questions in turn and looking at the pros and cons of various possible approaches. I am assuming throughout that we are talking about digital photography and that a computer will be used somewhere in the workflow.

Firstly, a recap of my own definition of photographic workflow, from an earlier post:

Workflow means a systematic, planned and repeatable pathway for transitioning the image data captured in the camera into usable images and safeguarding them in organised, secure long term storage

Following from this definition, here are the questions that need to be answered for each stage of the process:

(The symbol denotes a link to the corresponding post suggesting some possible answers)

1. In the field

Note that for this purpose “field” means the place where you are shooting, which can include home and studio.

1.1 What are you going to do about taking notes that will help you process your pictures correctly later?

1.2 What aids will you use to assist with later adjustments to white balance, exposure, etc?

1.3 Are you going to shoot RAW, JPEG or both?

1.4 Which colour space will use use?

1.5 Are you going to use one large memory card or several smaller ones?

1.6 Are you going to use external devices to safeguard your images in the field?

1.7 Are you going to delete “dud” images in-camera?

2. Transition to the computer

2.1 How will you physically transfer digital image data from the camera (or other storage device used in the field) to the computer?

2.2 In what file format will the transferred images be saved on the computer for subsequent processing?

2.3 What will you do about the physical organisation of image files on your computer so that you can locate and identify them later?

2.4 Will you add tags to help identify or search through your images?

2.5 How will you incorporate tethered photo capture? (added 20/2/09)

3. In-computer processing

3.1 What software will you use?

3.2 How will you select and deal with discards?

3.3 How will you standardise your processing?

3.4 To what extent will you use presets?

3.5 How will you approach sharpening?

3.6 How will you deal with noise?

3.7 How will you handle HDR and other specialised processing?

4. Transition to web

4.1 What file format will you choose for images to be displayed on the Internet?

4.2 Which on-line medium will you use?

4.3 How will you upload your images?

4.4 How will you deal with colour calibration?

5. Transition to print

5.1 Will you use your own physical printer or a third party printing service?

5.2 How will you deal with colour calibration?

6. Transition to long term storage

6.1 What file format will you use for long term storage?

6.2 Will you use a physical backup medium, the “cloud” or both?

6.3 How will you organise your backed up files for ease of location and retrieval?

7. Administration

7.1 What routine housekeeping tasks are required?

7.2 What additional record keeping do you need for your business?

7.3 What about links with your accounting system?

7.4 How should you document your workflow? (added 8/1/09)

I’ve probably forgotten loads of important questions.  If you can think of any please let me know and I’ll incorporate them.
